Taper Shank Type Shaper Cutters with GB 6081
These shank type shaper cutters are 20° PA, non-topping finishing cutters, for spur gears.
tooth profile can be done with GB 6082, DIN 1829, JIS B 4356, and BS 5246
Nominal pitch dia. 25mm, 38mm, module range: m1-m3.75
Diametral pitch shank type shaper cutter can be made as your request.
morse stub taper number is No. 2 or No.3
相關(guān)文章
-

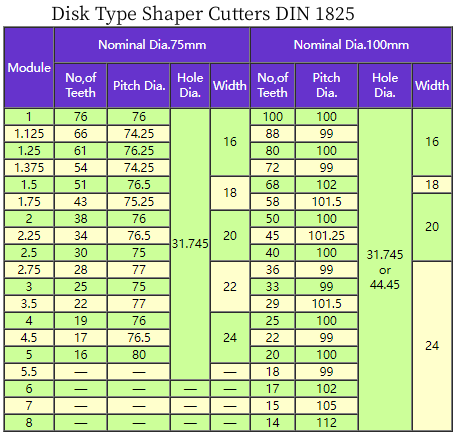

Disk Type Shaper Cutters with DIN 1825
