PA20° DP4.5 Standard Gear Cutting Hob with BPⅡ
2022-11-12 09:47:51
jiangxingTools
2938
PA20° DP4.5 Standard Gear Cutting Hob with BPⅡ
diametral pitch: Dp4.5, pressure angle: PA20°
hob size: OD 100 x L 95 x Bore 32mm
material: HSS M2 or M35+TiN or AP coating
accuracy: Class A, AA quality
tooth profile standard: DIN3972 BPⅡ
STD HOB : General tooth profile of standard hob cutter called Finish hob
相關(guān)文章
-

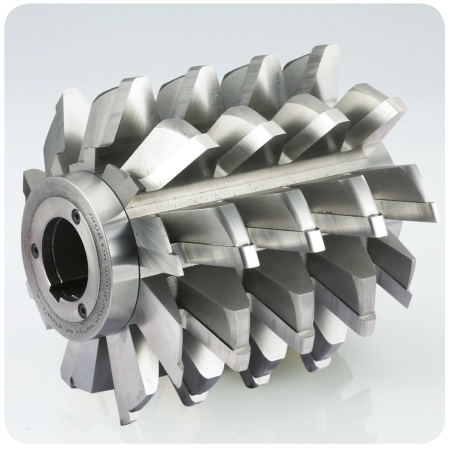

Built-up Gear Hob
