Profile for Hobs
2021-06-19 11:16:52
jiangxingTools
3458
Profile for Hobs

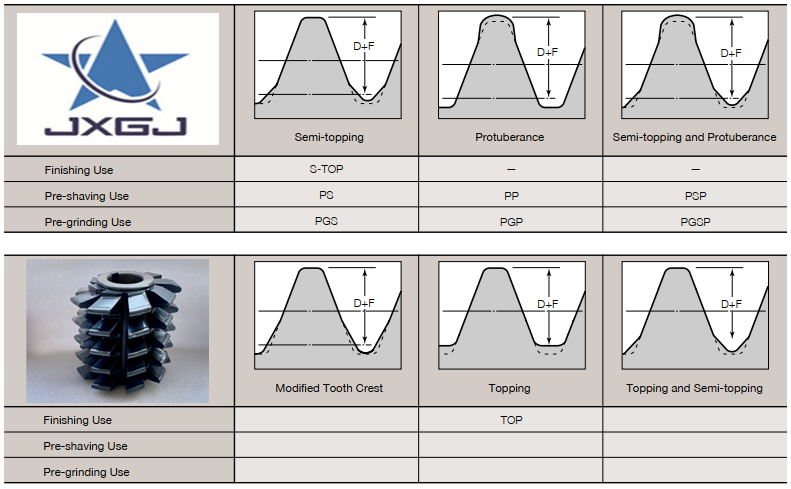

tooth profiles of hobs for finishing use, pre-shaving use, and pre-grinding use
D+F=whole depth of cut

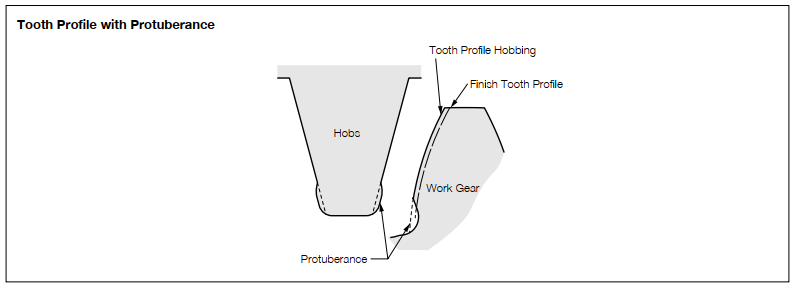

tooth profile of gear hobs with protuberance
please contact us for more details of precision hobs on our website m.50zuosi.cn
