PA20° PCD 100mm Bowl Type Gear Shaper Cutter with Module m1~m6
2022-05-20 14:19:23
jiangxingTools
3638
PA20° PCD 100mm Bowl Type Gear Shaper Cutter with Module m1~m6
Material：HSS M2,M35, M42, S390
Module：m1, m1.25, m1.5, m1.75, m2, m2.25, m2.5, m2.75, m3, m3.25, m3.5, m3.75, m4, m4.5, m5, m5.5, m6
Tooth profile：GB standard
Accuracy：AA, A
Bore：31.743mm，44.443mm
相關(guān)文章
-

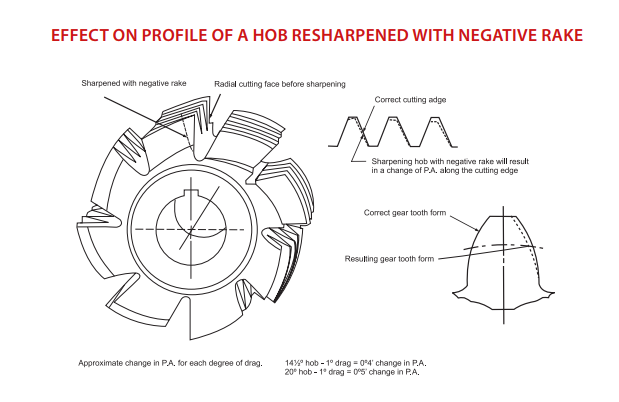

Effect of Hob Sharpening Errors
