Rack Milling Cutters/Worm Milling Cutters
2021-11-06 13:16:36
jiangxingTools
3209
Rack Milling Cutters/Worm Milling Cutters
module pitch, 20° presure angle
basic profile Ⅰ to DIN 3972
form A with striaght profile
form B with 10° inclined profile

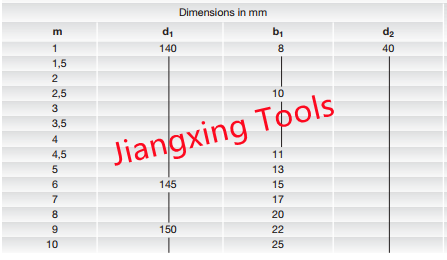

Conventional specifications of standard module rack milling cutters as following:
Unless otherwise specified, we supply form A.
We also manufacture: rack milling cutters with larger dimensions and different basic profiles.
