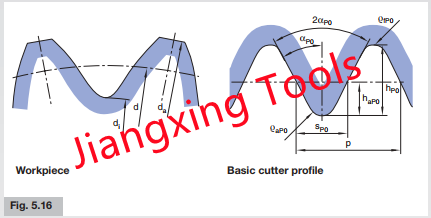

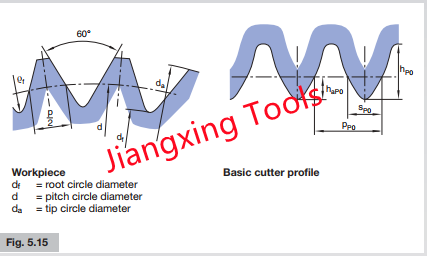

Involute Serration Hob with DIN5481 Standard
2021-10-25 11:25:01
jiangxingTools
3679
Involute Serration Hob with DIN5481 Standard
Jiangxing Tools is manufacturing gear hobs for cutting involutes splines with semi-topping, Shoulder clearance profiles in single or multi-thread designs.
Involute splines standards: DIN 5480, DIN5481, DIN 5482, ANSI B92.1, B92.2, BS3550, GOST-6033
Jiangxing Tools manufactures hobs for straight sided & involute serrations's per standards DIN 5481.
