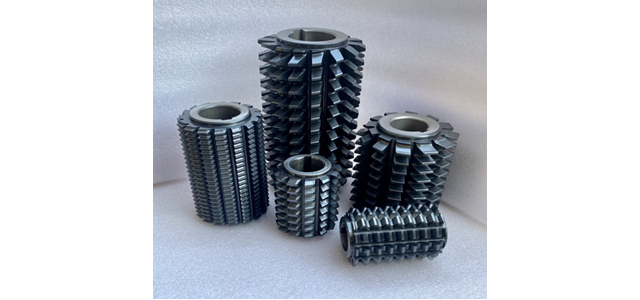

Gear Tools Involute Hob Cutter
Gear Tools Involute Hob Cutter
Module: M0.5-M22, DP50.8-DP1
Hob Types: Bore & Shank type
Accuracy Class: A/ AA/ AAA as per DIN 3968
Material: HSS M2, M35, M42, ASP2052, S390, MC90 and Carbide
PVD Coatings: TiN, AP, and AT
-
Gear Tools Involute Hob Cutter
Module: M0.5-M22, DP50.8-DP1, single/multi starts, Straight/ helix angle for any kind of hobs, and suitable for dry and wet cutting.

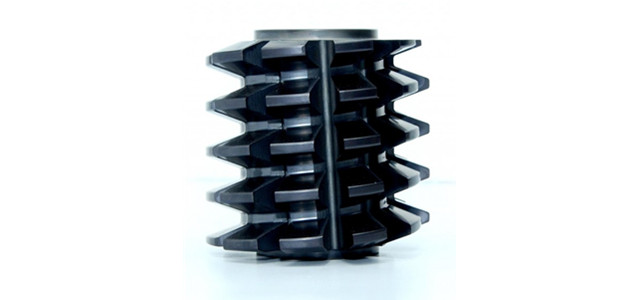

Hob Types: Bore & Shank type; Special Features such as Topping, Semi-Topping, Pre- Grinding, Pre- Shaving can also be provided.
Basic tooth profile is according to GB, DIN3972 standard, normally, gear hob for finishing cut is DIN3972-2
Hob diameter: OD15-290mm, Accuracy Class: A/ AA/ AAA as per DIN 3968
Material: HSS M2, M35, M42, ASP2052, S390, MC90, and Carbide
PVD Coatings: TiN, AP, and AT
Jiangxing Tools is specialized in manufacturing a wide variety of gear hobs including: Solid involute gear hobs from mod 0.5 -mod. 22 mm, Spline gear hobs (parallel or involute such ASA), Roller chain sprocket hobs, Worm wheel hobs, shank type or bore type, Timing pulley hobs, HM Hobs and Carbide hobs.
Non-standard special module gear hobs also can be designed and made according to specific gear data or workpiece drawings,
