Involute Spline Hob
Involute Spline Hob
Module: m1-m10,PA30, PA45
Tooth Profile: DIN5480, DIN5482 standard
Material: M2, M35,S390
Coating: TiN, AP
-
Involute Spline Hob
Module: m1-m10
Pressure angle: PA30, PA45
Tooth Profile: DIN5480, DIN5482 standard
Quality: Class A
Material: M2, M35,S390
Coating: TiN, AP
A Spline gear is used when the power transmits in the same rotating direction. The tooth profile is an involute profile. The specification is needed when ordering, as each country has a standard which follows their module value.
▲Fitted surface of tooth ▲Fitted major-diameter
ex) Germany’s industrial spline standard (pressure angle 30° ANSI
B92.2: USA, inch system standard JIS/KS: D2001, B1603 standard)

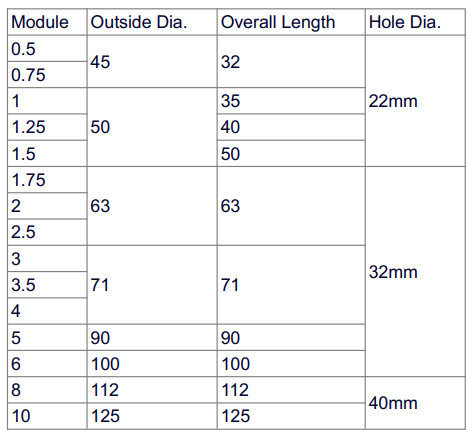

Specifications: Involute Spline Hob with Module 1-10 PA30

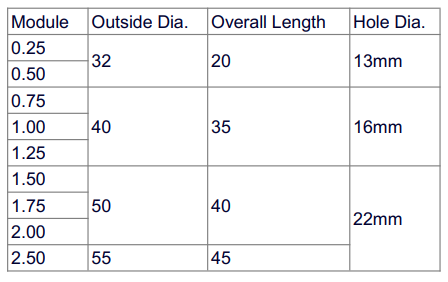

Specifications: Involute Spline Hob with PA45°
The complete range of hobs produced by us, besides large modules hobs, is completed by
- Solid gear hobs from mod 0.5 -mod. 22 mm
- Spline hobs (parallel or involute such ASA)
- Roller chain hobs
- Carbide hobs
- Worm wheel hobs, shank type or bore type
- Pulley hobs
- HM hobs
The precision class of hobs obviously is regulated by international standards such Din 3968 (class A and class AA), Any special requests on involute spline hob, please contact us for more details.
